Overview
On this page you'll find a summary of the KeyLink Implementation process along with instructions and videos on how to set up your physical KeyLink system. To download a copy of the KeyLink Product Specifications & Setup Guide click here.
Once your drawer(s) and computer are connected to the internet, please schedule your initial KeyLink Setup Call using the link provided in your email.
If your using your own computer (not supplied by BuildingLink), then go to our Configuring KeyLink Settings article next.
If you have any questions about your KeyLink order or setup, please contact BuildingLink Support.
Table of Contents |
- KeyLink Implementation Process
- KeyLink System Components
- Unboxing and Connecting Your KeyLink System
- Rivet Installation

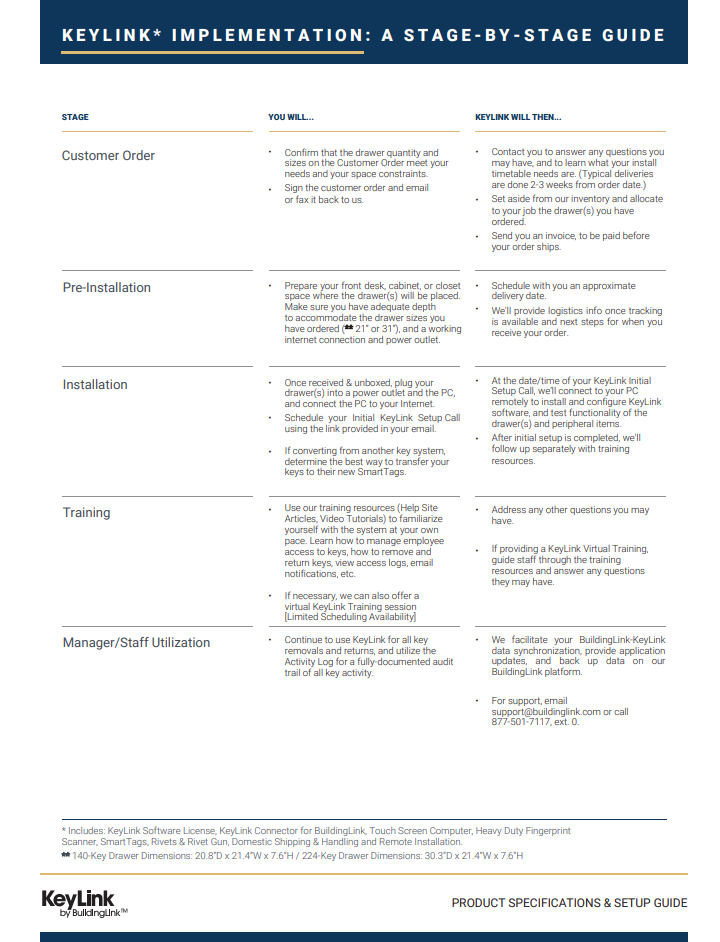

KeyLink Implementation Process
Click on the image to enlarge it or to download a copy click here.

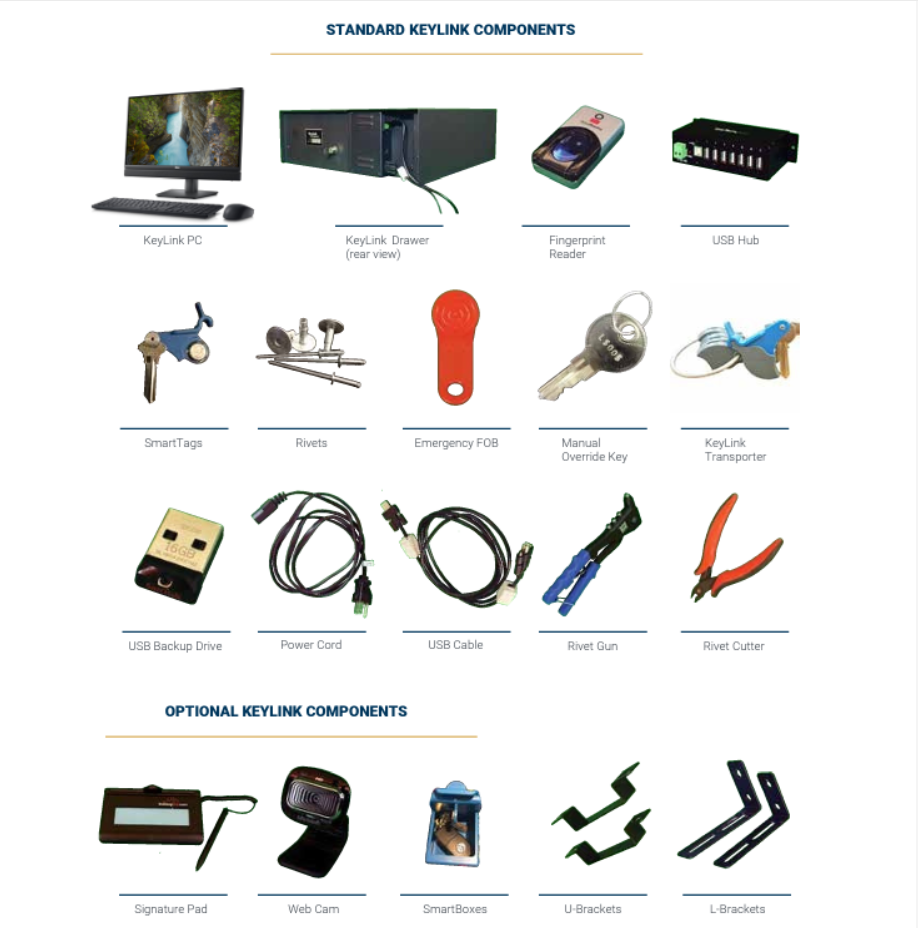

KeyLink System Components
Every KeyLink System comes with required and optional components. Before setting up your KeyLink System you need to open the box and confirm that you have all the required components listed below. If you are missing any of these items, especially the Emergency Key Fob and/or the Manual Override Key, please contact BuildingLink Support.
Standard Components
- All-In-One Touch Screen Computer
- KeyLink Drawer(s)
- Heavy Duty Fingerprint Scanner
- UBS Hub
- SmartTags
- A bag of Rivets
- Red Emergency Key Fob (for access in case of a drawer disconnect mode)
- Manual Override Key (to unlock the back of the drawer in case of a power outage)
- 2 Transporter KeyRing (in one box)
- Backup USB drive (local backup for map of drawers)
- Drawer Power Cord
- Drawer USB Cable
- Rivet Gun
- Rivet Cutter
- 2 L-Brackets (for securing purposes)
- 2 U-Brackets (for securing purposes)

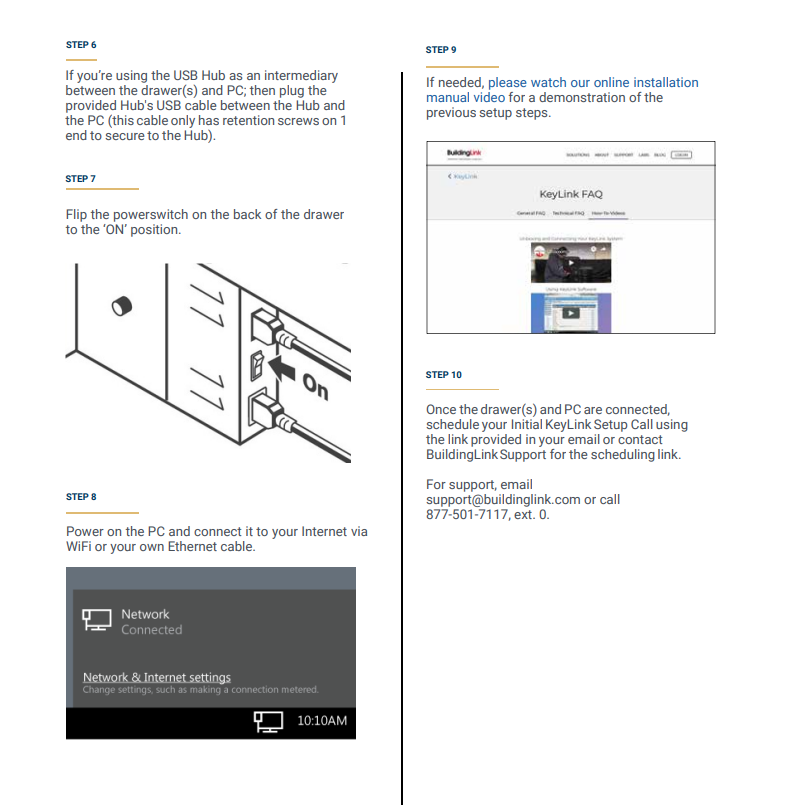

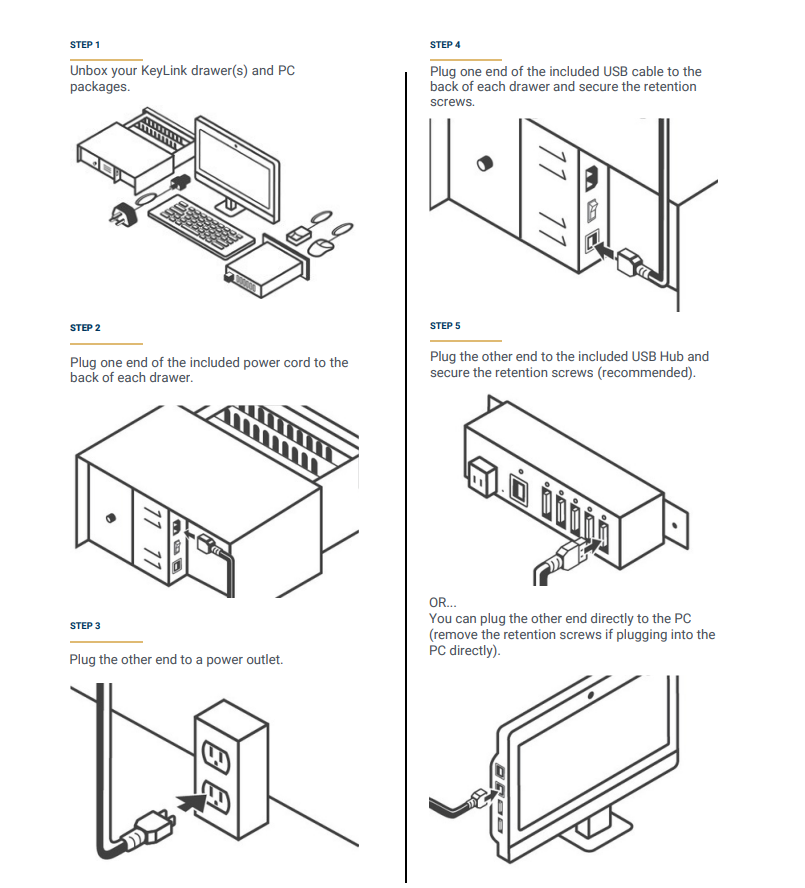

Unboxing and Connecting Your KeyLink System
Video Tutorial
Step by Step Instructions
Click on the images below to enlarge.

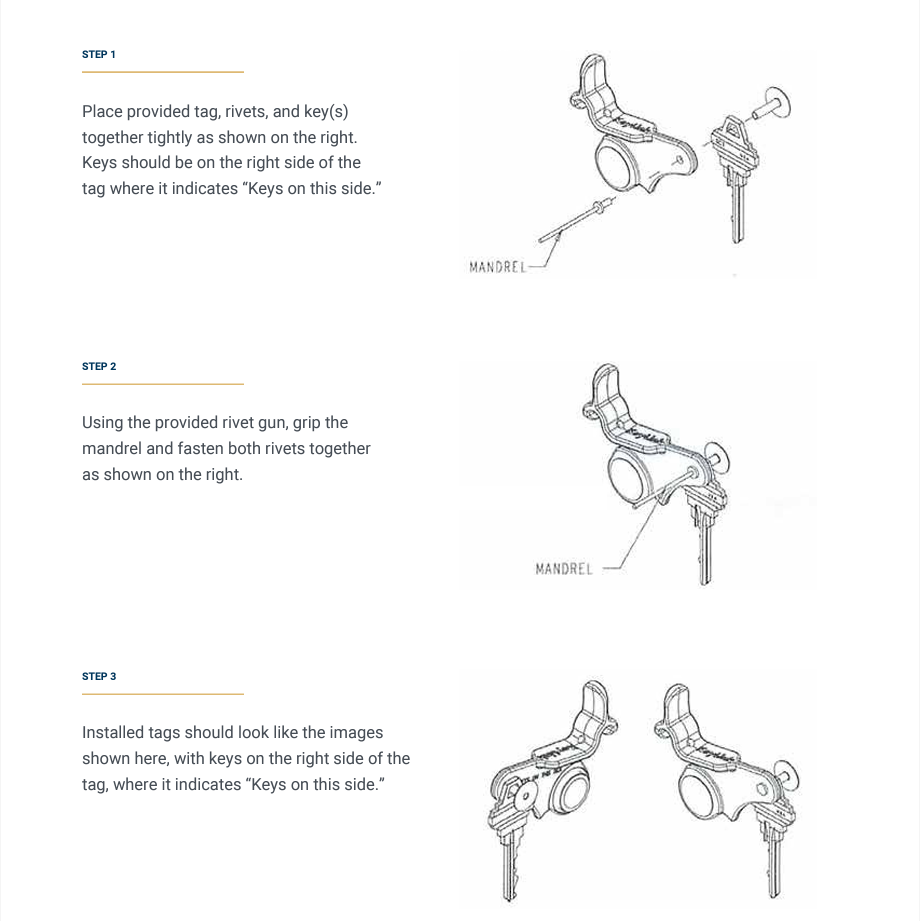

Rivet Installation
Video Tutorial
Step by Step Instructions
Click on the image below to enlarge.
